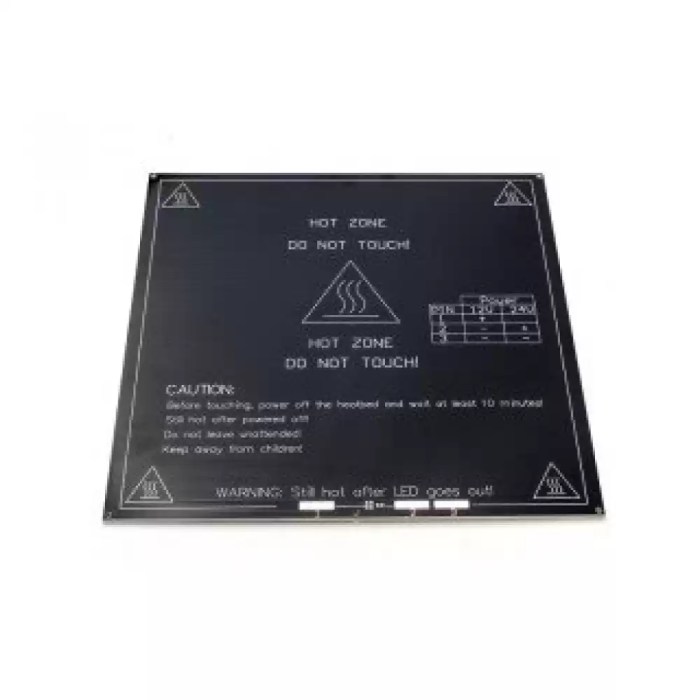

Description: Dimensions: 214x214x0.8mm Color: Black Power Input: 12V / 24V Power: 120W Laminate FR4 1.6±0.15mm 2 layer, 35μm copper Technology: aluminum plate Copper plated holes Resistance: under 12V voltage, resistance 1.2 ohms; under 24V voltage, resistance 4.8 ohms Features: 1. 12V /24 power arbitrarily connected. 2. Double-sided, without cable, heating uniformity, smooth printing . 3. Indistinguished between positive and negative poles, arbitrarily wiring. 4. Borosilicate materials, high transparency. 5. Heating the adhesion are good, plastic parts easily separated after cooling. 6. Eliminates the trouble of replace the special plastic film, does not exist the special plastic film reduce viscosity problem. 7. Suitable for Reprap machine heated circuit boards. Connect way: 12V connection: A line connected 1, while another receive 2, 3. 24V connection: A cable connected 2, another line connected 3 (1 do not connected).
