3D printer 42 stepper motor driver expansion board 8825/A4988

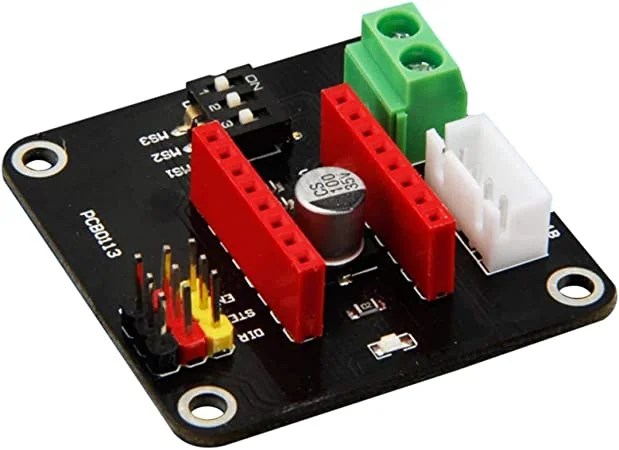

DRV8825 A4988 3D Printer 42 Stepper Motor Driver Expansion Board Control Shield Module DIY Kit H8WD Features: brand new and high quality With On-board DIP switch, you can easily adjust the drive segments Terminal power connector for easy connection drive power. for 12 / 24V drive scheme Suitable for 42 stepper motor drive, 3D printers and DIY. Pitch: 1400 x 1400mil (35.56 x 35.56mm) Logic voltage: 5V Input voltage: 12-30V Applicable module: A4988, DRV8825 Please note the direction when installing the drive module, otherwise it will burn module Specifications: Name: 4988/8825 Stepper Motor Drive Module Expansion Board Size: approx 42x42x15mm/1.65×1.65×0.59in Fixing: 3mm Hole Spacing: 1400x1400mil (35.56×35.56mm) Logic Voltage: 5V Input Voltage: 12-30V port: Digital Applicable Modules: A4988, DRV8825 Package Includes: 1 PC x Expansion Board Note: This product is only an expansion board, does not include 4988/8825 driver module Please note the direction when installing the drive module, otherwise it will burn module. Due to the differences of camera equipment, light intensity and display screens, the color of the item may be slightly different from that shown in the pictures. Please allow 0-2cm size difference due to manual measurement.
