Fiber Optic Ratio Coupler – 50:50 Splitter
$ 1.27
Availability:
Share
❤︎ About the Product
- Material : Brass
- Stone Quality : AAA
⛟ Shipping & Delivery
Refer - Shipping & Delivery
✦ Jewellery Care
- Keep in cool and dry place, away from direct sunlight.
- Store in separate zip lock bags with air squeezed out to avoid damages.
- Wipe it gently with a clean cloth after each use, to increase longevity.
- Avoid contact with perfume, moisturiser, soap or other harsh chemicals.
ⓘ Disclaimer
At Uniqque Jewels, we make every effort to display product colors and images as accurately as possible on our website. However, slight variations in actual product color may occur due to lighting during photography and differences in screen or monitor display settings.

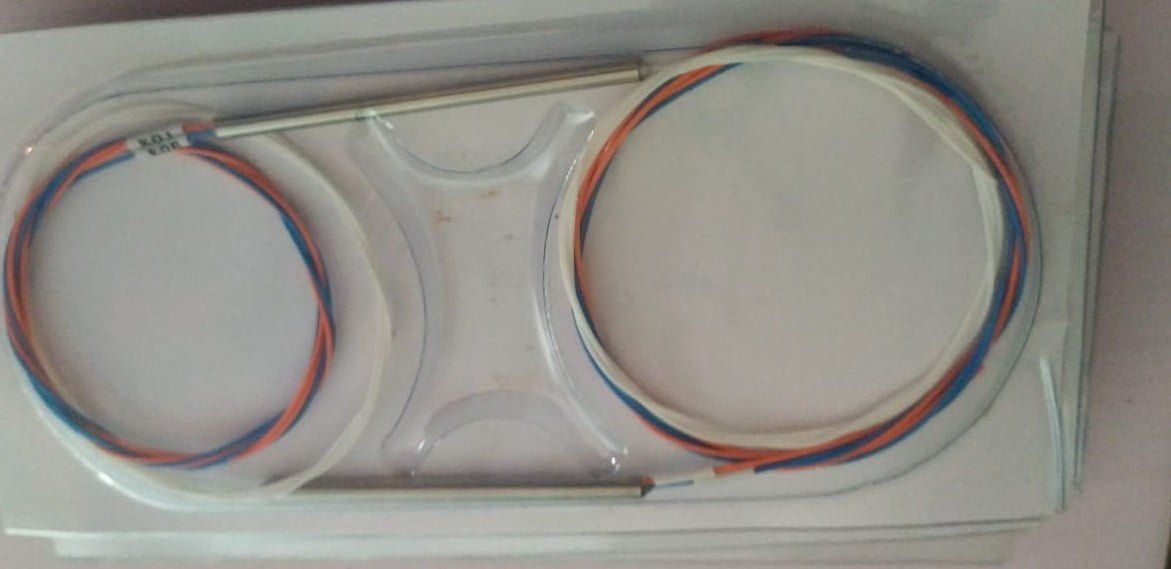

Description Fiber Optic Ratio Coupler – 50:50 Splitter OverviewA 50:50 fiber optic ratio coupler evenly splits the optical signal into two outputs, each carrying 50% of the input power. This type is widely used in FTTH, PON, and other optical networks for signal distribution, redundancy, and testing where equal power is required on both outputs. Key Features Type: Optical Ratio Coupler / PLC Splitter Splitting Ratio: 50:50 Fiber Type: Single Mode (G.657A1 or G.652D) Connector Types: SC/APC, SC/UPC (custom options available) Operating Wavelength: 1260–1650 nm Insertion Loss: ≤ 3.5 dB (each output) Return Loss: ≥ 55 dB (APC) / ≥ 50 dB (UPC) Directivity: ≥ 55 dB Maximum Input Power: 300 mW Cable Diameter: 0.9 mm, 2.0 mm, or 3.0 mm Operating Temperature: –40°C to 85°C Storage Temperature: –40°C to 85°C Package Type: Steel tube or ABS box Compliance: Telcordia GR-1209 & GR-1221 Applications FTTH / PON networks Equal optical signal distribution Redundant network paths Testing and monitoring setups Warranty: 1 Year
