Union L22174 Everest Genuine Multipoint Gearbox – Lift Lever or Split Spindle
$ 96.32
Availability:
Share
❤︎ About the Product
- Material : Brass
- Stone Quality : AAA
⛟ Shipping & Delivery
Refer - Shipping & Delivery
✦ Jewellery Care
- Keep in cool and dry place, away from direct sunlight.
- Store in separate zip lock bags with air squeezed out to avoid damages.
- Wipe it gently with a clean cloth after each use, to increase longevity.
- Avoid contact with perfume, moisturiser, soap or other harsh chemicals.
ⓘ Disclaimer
At Uniqque Jewels, we make every effort to display product colors and images as accurately as possible on our website. However, slight variations in actual product color may occur due to lighting during photography and differences in screen or monitor display settings.

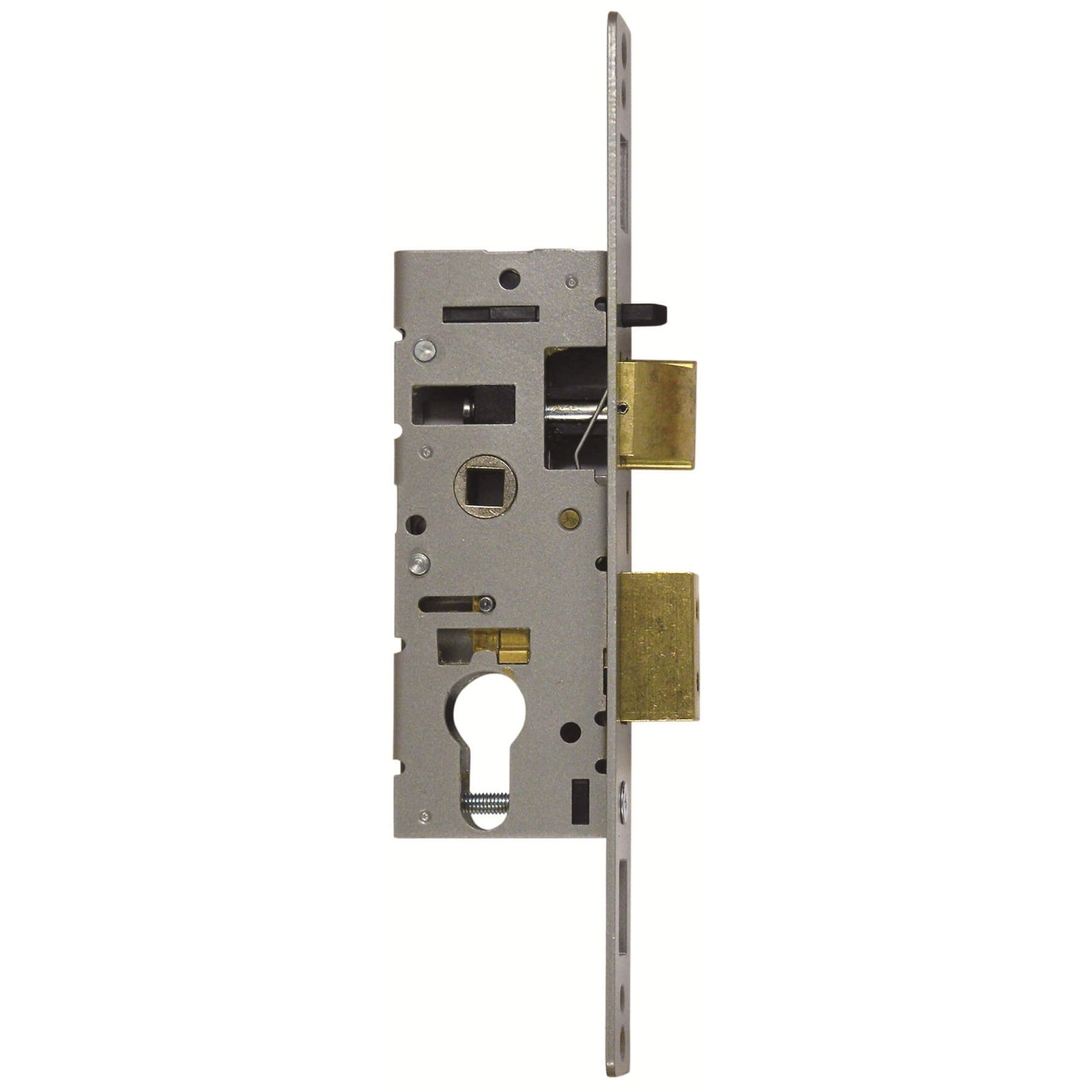

This Union L22174 Everest multipoint gearbox is supplied with a 210mm x 30mm faceplate. Strike plate, fixings and shootbolt kits are no longer available so the existing shootbolts cannot be reused. Alternatively, the case must be operated as a deadbolt only. Operation: Lift lever or split spindle Latch reversal: Push the latch clear of the faceplate, twist the latch to reverse, and release. To lock the door 1. On closing the door, the latch is automatically engaged. 2. Lift the handle up to engage the additional locking points. 3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle). To unlock the door 1. Unlock the system by turning the key. 2. Push the handle downwards to disengage the locking points. 3. A further quarter turn of the key will retract the latch. SKU: L22174S Categories: Door Locks, Locks and Security, Metal Door Mortice Lock Cases, Mortice Locks, Multipoint and UPVC, Multipoint Gearboxes, Union Tags: drox-brand, UNION Brand: UNION
